    Nodes have 4 Trigger Modes, according to which Resources get redistributed.

    info

    Set the Trigger Mode of a Node in its Functional menu, under Trigger.



    When a Node fires it pushes or pulls Resources along the Resource Connections that are connected to it. Whether a Node fires depends on its Trigger Mode.

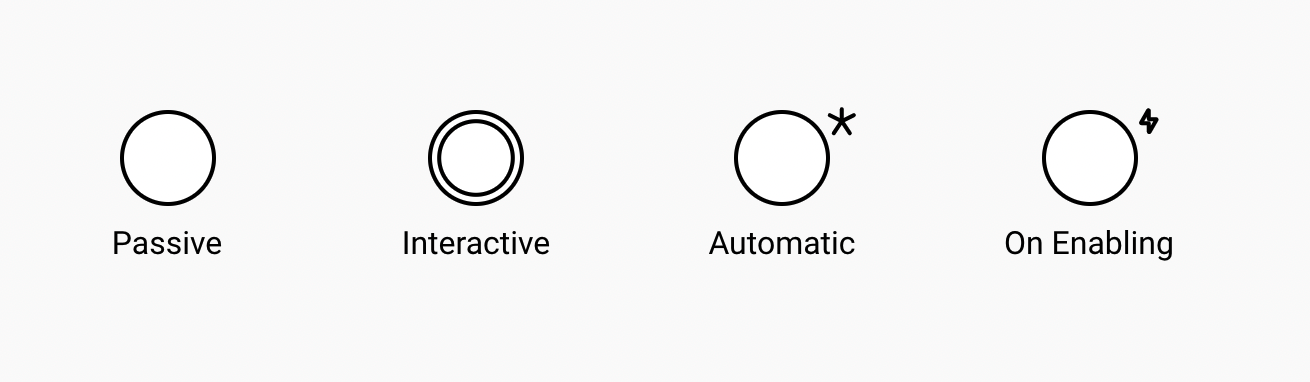

    A Node in a Machinations diagram can be in one of 4 different Trigger Modes:

    1. Passive – can fire only in response to a trigger generated by another element
    2. Interactive – fires only when clicked on, during Play (not during Batch Plays)
    3. Automatic – fires every Step. All automatic Nodes fire simultaneously
    4. Enabling – fires once, immediately after you click the Play button, AND any time a condition is met
    info

    Interactive Nodes fire after being clicked when the next Step begins. This may make it seem as if the Node didn’t receive the input or that there’s a delay.

    danger

    Interactive Nodes are only clickable during Interactive Play. During Batch Plays, they are treated as passive Nodes.

    🔧 Here are 3 examples of Trigger Modes, and their actions (or lack thereof).

    1. In the Push example, the Blue, Orange, Green and Red Pools are set to push a Resource at any Step their Trigger Mode is met
    2. In the Pull example, the 4 coloured Pools are set to pull a Resource at any Step their Trigger Mode is met.
    3. The Triggered example showcases how another Node on the diagram can act as an activator.

    Enabling example: The Source will fire at the beginning of the Play AND thereafter every time the Enabling Condition (Enabler >0) is met.

    warning

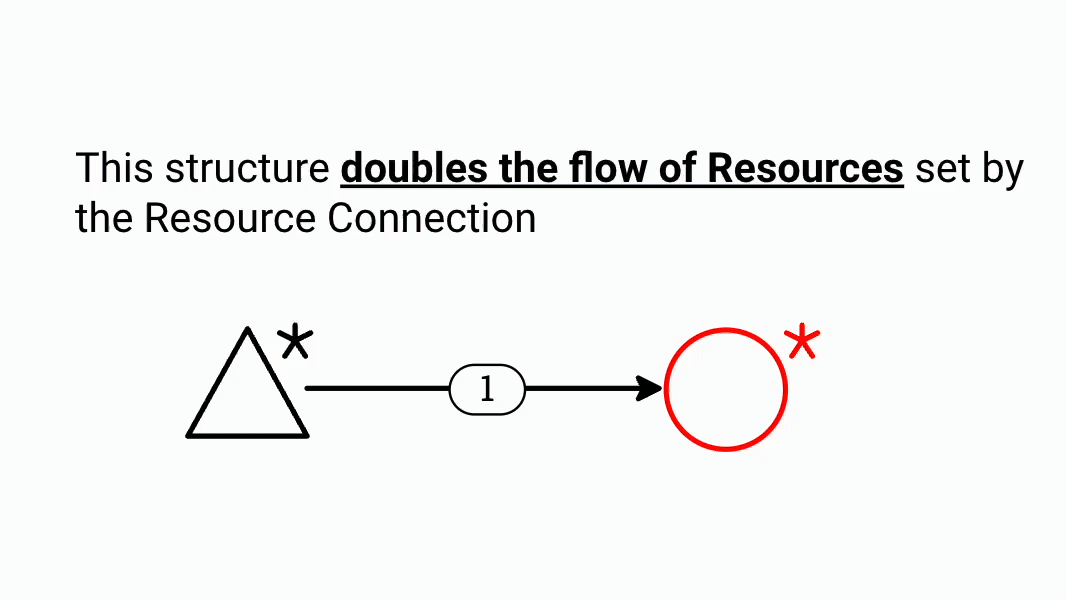

    In the example below, both the Source and the Pool are set to automatic. This will double the flow of Resources, as both Nodes will perform an action during a given Step. So instead of 1 Resource flowing from the Source to the Pool, as stated on the Resource Connection Label, 2 Resources will be transferred during one Step.
